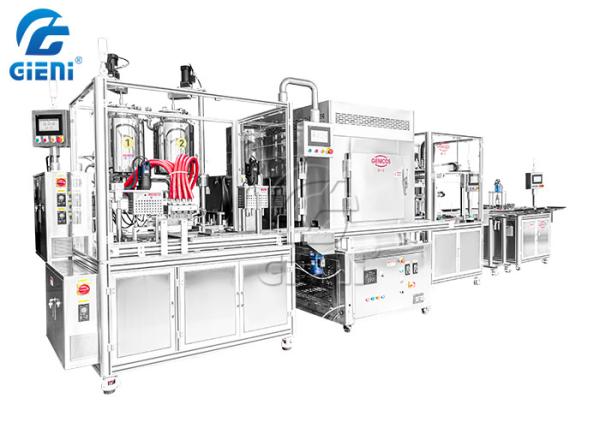

Automatic Full Body Silicone Lipstick Manufacturing Equipment​(FSM-4) is our latest design with 4 nozzles, the output is 720pcs tp 960 pcs per hour. This line consists of pre-heating station, auto filling, auto re-melting, auto cooling, auto demolding, auto screw down and manual capping.

Applications of Automatic Full Body Silicone Lipstick Manufacturing Equipment

• used for full body silicone lipstick production, applied for single color filling and dual color filling, marble lipstick available

Key Features of Automatic Full Body Silicone Lipstick Manufacturing Equipment

1. the distance between filling nozzles is adjustable, very flexible
2. fast disassemble valve, can switch to other materials in very short time
3. using heating coiled tubes insteaed of traditional oil circulation design, more safe and sanitary

Pre-heating device
1. Adopts Switzerland brand LEISTER Hot Air Gun, blow rate and heating rate are adjustable
2. With lift up and down function, controlled by cylinder
3. Height adjustable
Filling machine (4 nozzles)
1. Two 20L 3-layer stainless steel tank, inner layer is SUS316L.
2. With heating, mixing and vacuum function, mixing speed adjustable.
3. Tank is able to be lifted up/down automatically.
4. Fully servo motor control, fill precision & volume adjustable
5. Filling nozzle with heat preservation and anti-drip functions.
Cooling Unit
1. Temperature range max -20℃
2. Cooling time is adjusable from the mold moving speed.
3. Adopted France brand compressor, environmental refrigenrant medium RAR04A, quality guarantee.

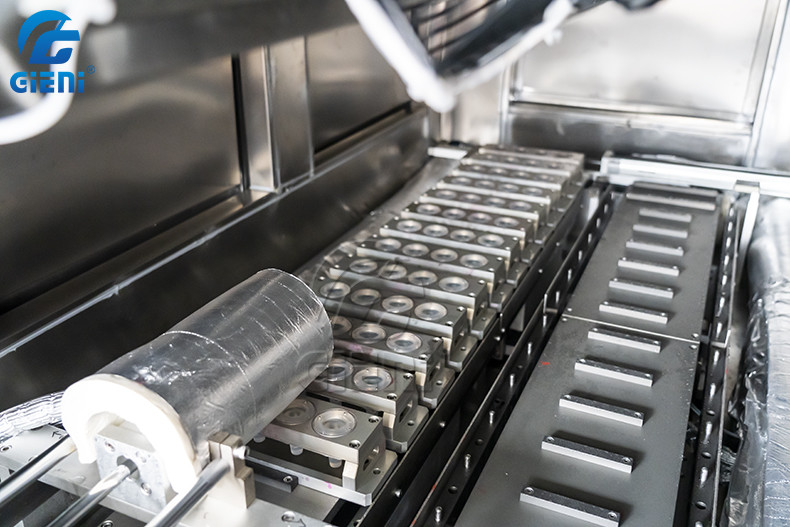

Demolding Unit
1. Vacuum type
2. Grasper the container 4 pcs at a time
3. Rotary cylinder control the grasper's rotating
4. Two-stage vacuum system to release lipstick out of silicone rubber.
5. Lipstick Container Holder automatically to conveyor
Demolding Unit
1. Servo type Screw Down
